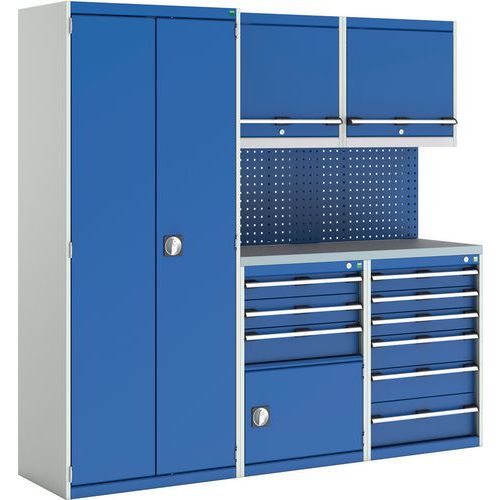

Bott Workshop - Full Modular System - 5 Piece Storage Units - Cubio

This Bott Cubio modular kit has superior heavy-duty quality, ideal for garages and workshops

The large cupboard is HxWxD 2000x800x525mm and has four inner shelves that adjust on 25mm increments, each with a strong 100kg UDL, and Perfo panelling inside the doors, for excellent extra storage.
The two overhead cupboards have inner Perfo panelling and lift-up doors with gas strut support.
The drawer cabinet is HxWxD 900x650x525mm and has six drawers, x3 100mm, x2 150mm, and x1 200mm high drawers.
The combination cupboard and drawer cabinet is HxWxD 900x650x525mm and has 3 drawers of 100mm, 125mm, and 150mm in height.
All the cupboards have heavy-duty reinforced steel housing with 1.5 tonnes UDL capacity.
All drawers have a 75kg UDL and 100% extension drawers.
Overal dimensions 2000x565 x 2100mm wide.

Description

This Bott Cubio modular kit has superior heavy-duty quality, ideal for garages and workshops

The large cupboard is HxWxD 2000x800x525mm and has four inner shelves that adjust on 25mm increments, each with a strong 100kg UDL, and Perfo panelling inside the doors, for excellent extra storage.
The two overhead cupboards have inner Perfo panelling and lift-up doors with gas strut support.
The drawer cabinet is HxWxD 900x650x525mm and has six drawers, x3 100mm, x2 150mm, and x1 200mm high drawers.
The combination cupboard and drawer cabinet is HxWxD 900x650x525mm and has 3 drawers of 100mm, 125mm, and 150mm in height.
All the cupboards have heavy-duty reinforced steel housing with 1.5 tonnes UDL capacity.
All drawers have a 75kg UDL and 100% extension drawers.
Overal dimensions 2000x565 x 2100mm wide.

Made in UK

Environmental and/or social benefits.

This packaging is either partially or entirely recycled, which means that it has been made using materials from recycling facilities (refer to the technical specifications for more information).
This product is either partially or entirely recycled, which means that it has been made using materials from recycling facilities (refer to the technical specifications for more information).

Specifications

Product Information

Product Name	Bott Workshop - Full Modular System - 5 Piece Storage Units - Cubio
Brand	Bott
Packaging	the set

Technical Specification

Width (mm)	2100 mm
Depth (mm)	565 mm
Height (mm)	2000 mm
Number of drawers	9
Number of shelves	4
Number of doors	5
Number of cabinets	5
Frame colour	Light grey
Product origin	Made in UK
Type of shelf	Solid
Lean Management	yes
Material	Steel
Recycled packaging (%)	20 %
Max. load per shelf (kg)	100 kg
Drawer Max. load (kg)	75 kg
Table top depth (mm)	525 mm
Table top finish	Linoleum
Door material	Steel
Percentage recycled (%)	20 %
