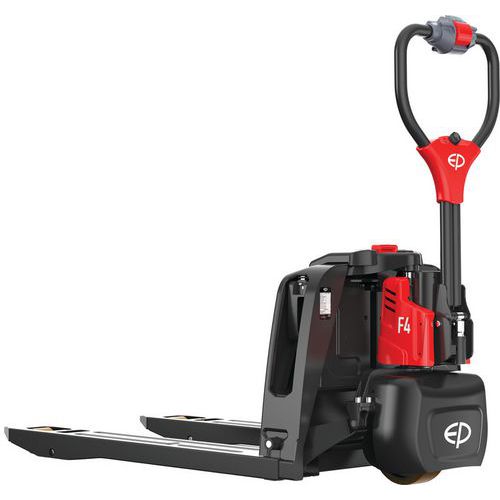

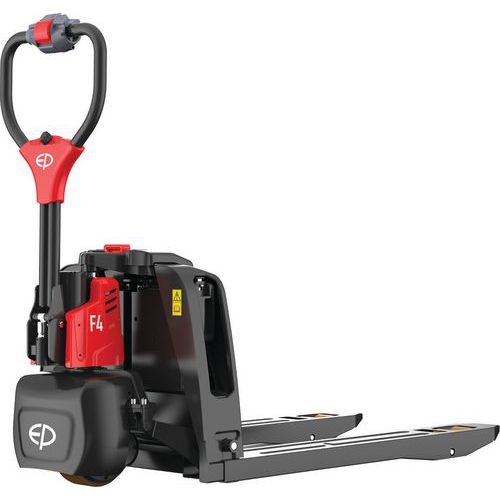

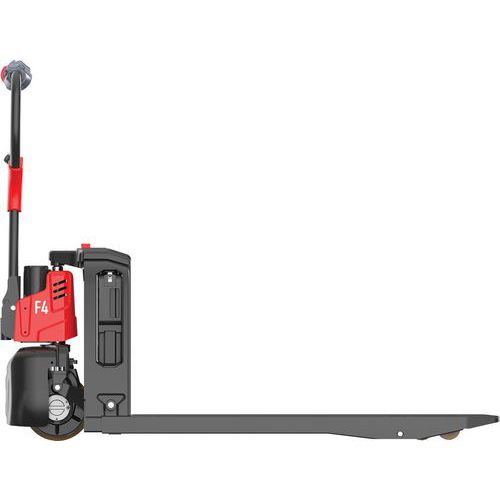

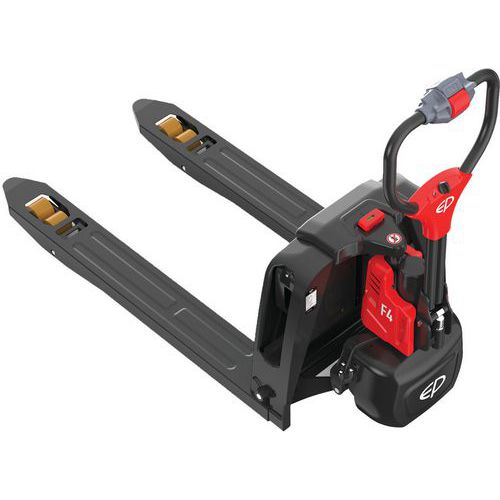

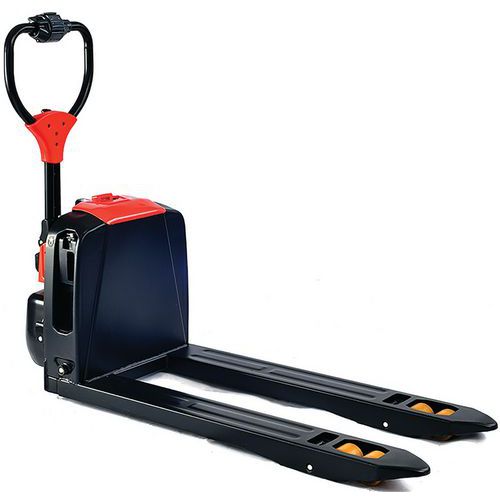

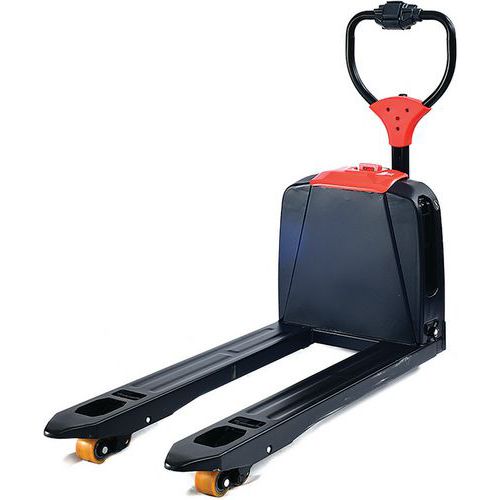

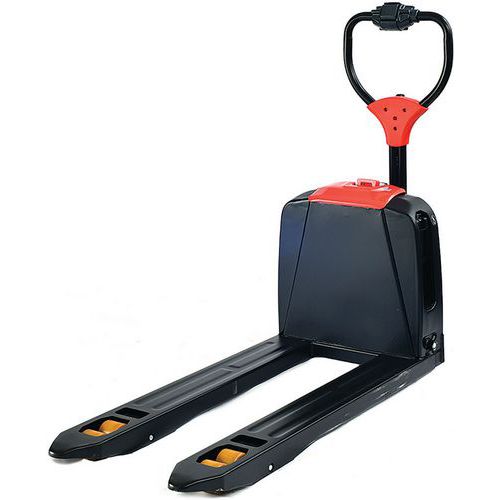

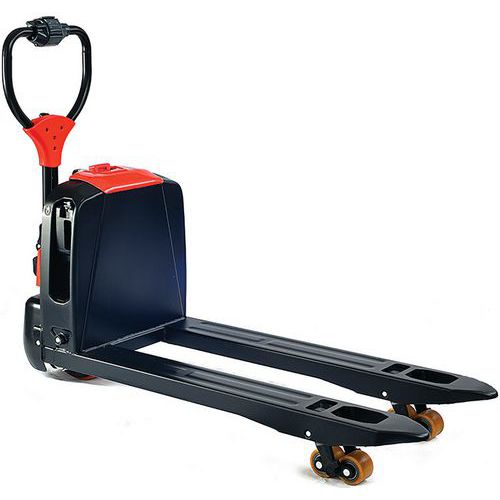

Heavy-Duty Fully Electric Pallet Truck – 1500kg Capacity - EP F4 Model

Highly flexible, fully electric F4 pallet truck all-rounder with a two-slot battery design

This fully electric pallet jack has a load capacity of 1500kg / 1.5 tons with a maximum lift height of 115mm.

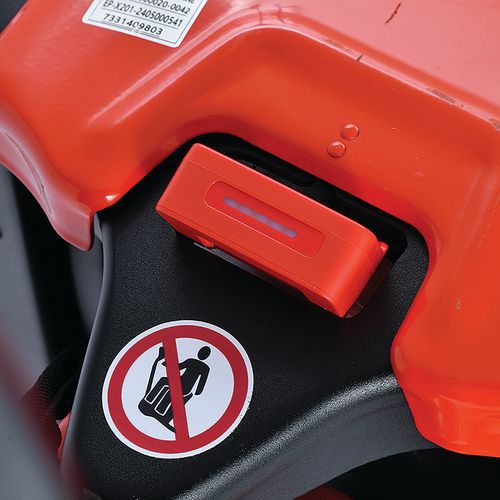

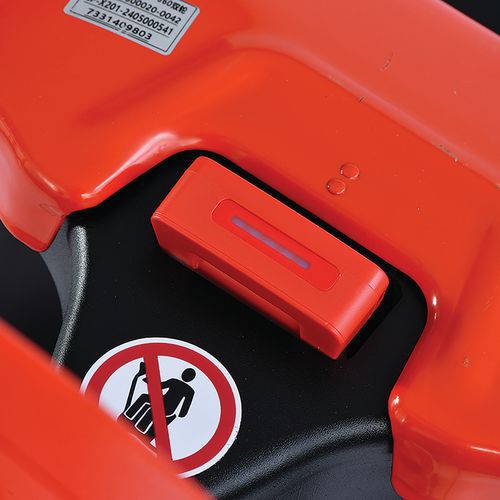

Lithium-ion batteries have a longer lifespan and are maintenance-free, giving you approximately 2 hours of usage on one battery.

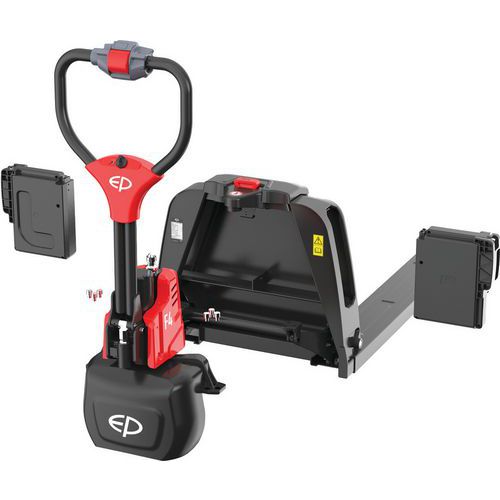

This pallet truck has two battery slots - which doubles the life of the pallet truck for those longer, heavier-duty tasks.
The second battery slot doubles as a handy storage container for lighter and quicker tasks.

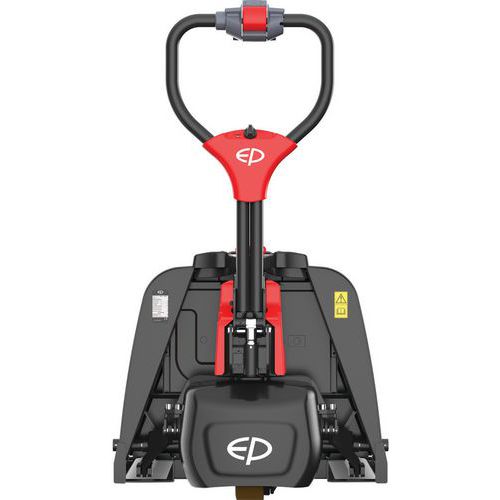

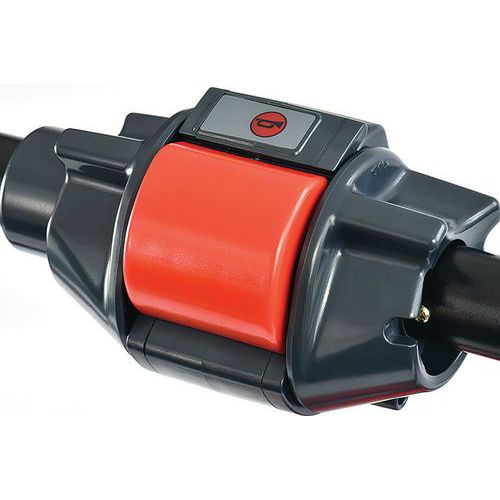

Fitted with an electric lift/lower button on the ergonomic handle.
Variable speeds, including a button that puts the pallet truck into a slow 'creep' mode.
Reliable drive system - the gradability can reach 10% even when loaded to the maximum.
The charger allows the 24V / 20Amp -4A/10A Lithium-ion battery to charge at any three-pin 240V outlet quickly.
The pallet truck's electromagnetic braking system improves safety.
Not suitable for use over uneven floor surfaces or outdoors.

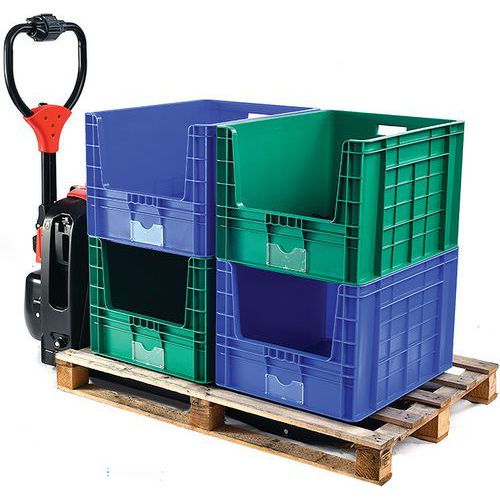

Perfect for standard 800mm wide Euro pallets.

Description

Highly flexible, fully electric F4 pallet truck all-rounder with a two-slot battery design

This fully electric pallet jack has a load capacity of 1500kg / 1.5 tons with a maximum lift height of 115mm.
Lithium-ion batteries have a longer lifespan and are maintenance-free, giving you approximately 2 hours of usage on one battery.
This pallet truck has two battery slots - which doubles the life of the pallet truck for those longer, heavier-duty tasks.
The second battery slot doubles as a handy storage container for lighter and quicker tasks.
Fitted with an electric lift/lower button on the ergonomic handle.
Variable speeds, including a button that puts the pallet truck into a slow 'creep' mode.
Reliable drive system - the gradability can reach 10% even when loaded to the maximum.
The charger allows the 24V / 20Amp -4A/10A Lithium-ion battery to charge at any three-pin 240V outlet quickly.
The pallet truck's electromagnetic braking system improves safety.
Not suitable for use over uneven floor surfaces or outdoors.
Perfect for standard 800mm wide Euro pallets.

Please Note: The F4 pallet truck comes with one battery as standard. Additional batteries can be added to your order, for further information, please contact us by live chat at sales@manutan.co.uk or on 0800 652 6000 (For Manutan)/ customer.services@rapidracking.co.uk or on 08000 147 444. (For Rapid Racking)

Customer warranty : 1 year
Load capacity (kg) : 1500 kg

Specifications

Product Information

Product Name	Heavy-Duty Fully Electric Pallet Truck – 1500kg Capacity, Load capacity: 1500 kg
Brand	EP
Packaging	unit

Technical Specification

Load capacity (kg)	1500 kg
O/A width (mm)	590 mm
Min. lift height (mm)	80 mm
Max. lift height (mm)	115 mm
Fork length (mm)	1150 mm
Fork width (mm)	150 mm
Fork wheel material	Polyurethane
Fork wheel Ø (mm)	80 mm
Steeringwheel Ø (mm)	210 mm
Battery voltage (V)	24 V
Battery capacity (Ah)	20 Ah
Moving speed with load (km/h)	4.5 km/h
Moving speed without load (km/h)	5.0 km/h
Weight (kg)	120 kg
Turning radius (mm)	1330 mm
O/A height (mm)	1190 mm
Customer warranty	1 year
